Underlay

Home / Accessories / Underlay

Underlay

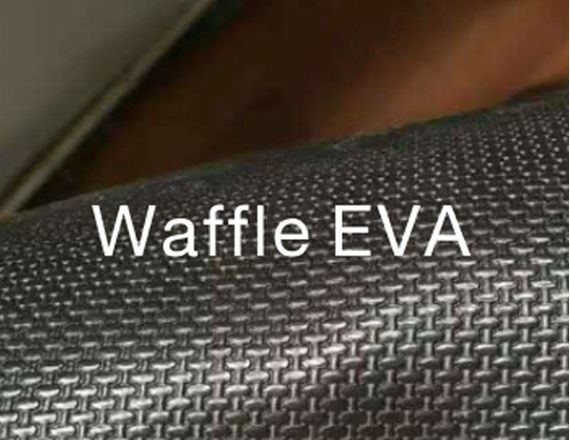

Waffle EVA

DescriptionHigh density EVA with embossed film (waffle)

Main Raw MaterialEthylene-vinyl acetate copo

PackageNude/Pallet

BenefitsFor soundproof

Protect the flooring from moisture arising from concrete

Water absorption 0.003lb/ft3 Provides firmness and comfort underfoot

Thickness1.0/1.5/2.0mmRoll Size200 SF/18.6 SQM
Density110 kg/m3Roll Size100 SF/9.3 SQM
Length8.5/16.91metersSTC Rating72 db
Width1.1 metersIIC Rating73 db

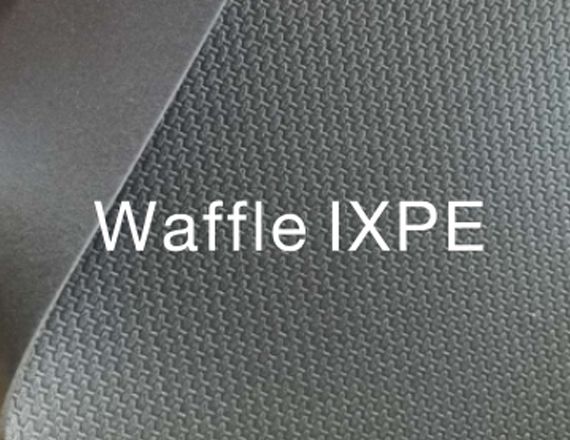

Waffle IXPE

DescriptionHigh density IXPE with embossed film (waffle)

Main Raw MaterialChemical crosslinked polyethylene foam

PackageNude/Pallet

BenefitsFor soundproof

Protect the flooring from moisture arising from concrete

Water absorption 0.003lb/ft3 Provides firmness and comfort underfoot

Thickness1.0/1.5/2.0mmRoll Size200 SF/18.6 SQM
Density50 kg/m3Roll Size100 SF/9.3 SQM
Length8.5/16.91metersSTC Rating72 db
Width1.1 metersIIC Rating73 db

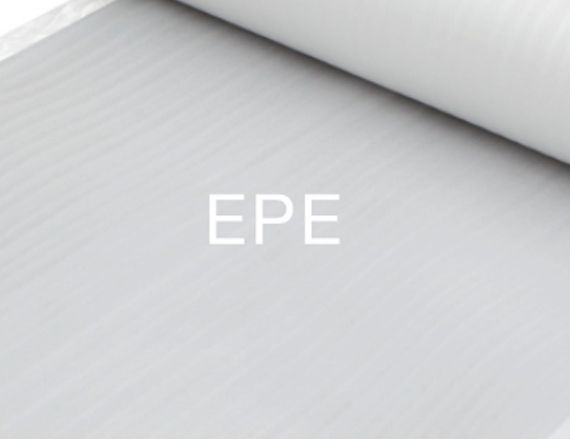

EPE

DescriptionEPE Foam

Main Raw MaterialPolyethylene

PackageNude/Pallet

BenefitsThe standard in sound and moisture protection

Self-leveing

Easy to install with attached overlapping lip and tape

Thickness1.5/2.0mmRoll Size200 SF/18.6 SQM
Density25 kg/m3Roll Size100 SF/9.3 SQM
Length8.5/16.91metersSTC Rating44 db
Width1.1 metersIIC Rating48 db

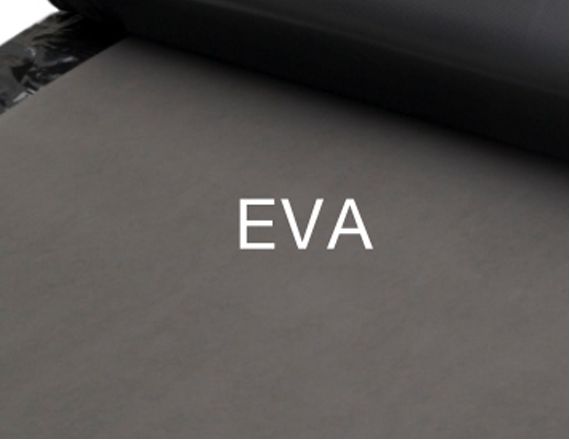

EVA

DescriptionEVA

Main Raw MaterialEthylene-vinyl acetate copo

PackageNude/Pallet

BenefitsFor soundproof

Protect the flooring from moisture arising from concrete

Water absorption 0.003lb/ft3 Provides firmness and comfort underfoot

Thickness1.5/2.0mmRoll Size200 SF/18.6 SQM
Density110 kg/m3Roll Size100 SF/9.3 SQM
Length8.5/16.91metersSTC Rating66 db
Width1.1 metersIIC Rating72 db
